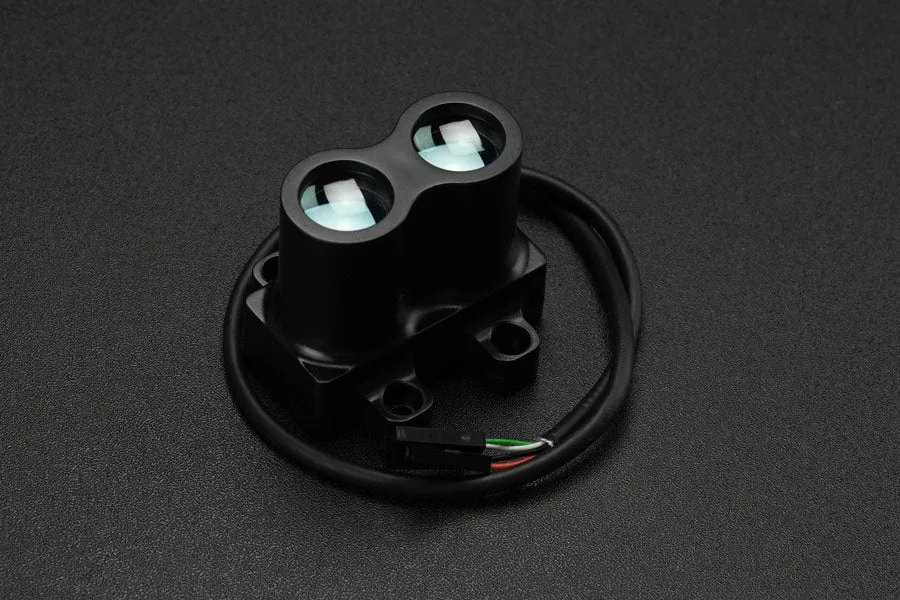

LPB40B Single-Point Ranging LiDAR is equipped with the reliable DToF technology, providing impressive stability and accuracy of distance measurement, even under bright conditions with 100klux of illumination. This sensor is optimised for both indoor and outdoor usages and its range extends up to 40m with an accuracy of ± 5cm. Moreover, the sensor is adjustable from 1 to 2000Hz, suitable for various high-speed applications. It also comes with UART output, allowing for easy integration with Arduino IO expansion boards, making it an ideal choice for applications such as drone altitude hold, vehicle collision avoidance, intelligent transportation, and IoT security.
The LPB40B IP65 DToF Single-Point Ranging LiDAR Sensor is rated IP65 and the lens is composed of coated crown glass, providing dependable readings in industrial environments. Safety features include reverse connection, overvoltage, and current limits.
DToF Technology principle
IP65 Protection Level
Dimensional drawing of LPB40B ToF Single-Point Ranging LiDAR
Features:
Applications:
Specification:
0.05~40m (90% reflectivity indoors and outdoors)
0.05~12m (10% reflectivity indoors and outdoors)
